Stainless Steel wire mesh Products

Stainless steel wire mesh has many excellent properties allowing it to be used in many industries as well as architectural or design projects. Decorative stainless wire mesh is increasingly used for garden projects, wire fencing and privacy screens. It’s also a top choice for interior design for cabinetry accents, lighting features, and more. Stainless steel wire mesh can be used in windows and doors, allowing for air to flow through while keeping insects out. Stainless welded mesh is also a top choice for architectural and guarding uses in infill panels, railing system, wall cladding, machine guards, security screens and various fabrication jobs.

Our company produces variety of stainless steel welded wire mesh, stainless steel window screen, stainless steel crimped wire mesh and other woven and welded mesh products.

After years of development, our production and sales have increased rapidly, and the relationship with customers has continued to deepen. The quality of our products is guaranteed for every delivery, making them more popular among users, and the sales market is also expanding.

Stainless steel mesh is used in chemical, construction, textile, medicine, aviation, aerospace, railway, highway, garden protection, aquaculture, aquaculture, metallurgy, national defense, coal, minerals, light industry, decoration, agriculture, forestry, parks, machinery and other fields.

Stainless mesh sheet products find more applications in soundproof walls, roofs, powder floors, large mine screens, electronic industry and household appliances, mechanical equipment safety protection and motor fan blade cover, air filter and heat dissipation treatment, various machine tools and automotive equipment supporting products. The mesh sheet is supplied in square, rectangular, disc and other shapes.

Our company sincerely welcomes customers to visit us and negotiate business. We hope that we can cooperate sincerely and share the joy of creation and success.

We will rely on good product quality, good service system, innovative business model and enterprising spirit to provide customers with good products and services.

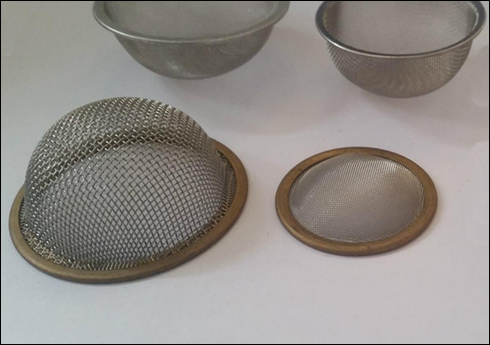

We supply diverse range of mesh disc options, including single-layer, multi-layer, covered edges, welded, and sintered. Wire mesh discs placed in pipes,tubes,ducts as inline filters, filtration systems and more. Wire mesh pack screens filter discs are made from woven or sintered metal wire sheets. Stainless steel screen disc materials are available in several sizes, styles, and thicknesses for virtually any application.

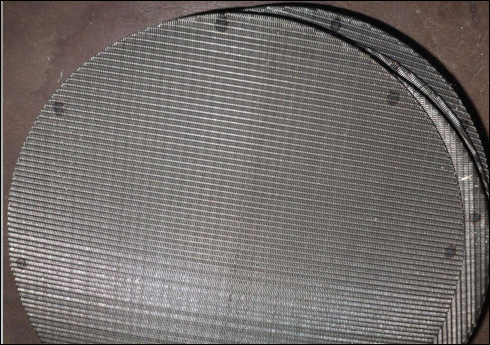

Stainless steel mesh for filter disc screen, in round,square, any sheet shape

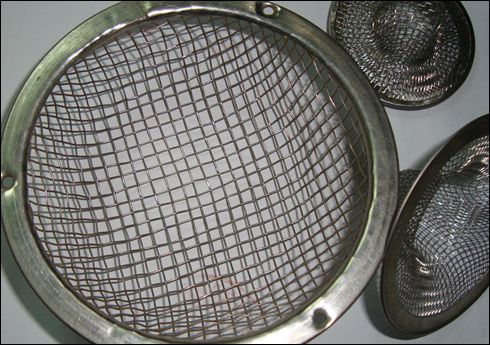

Stainless Steel Rimmed Mesh Disc, aluminum framed filter mesh: woven square hole wire cloth

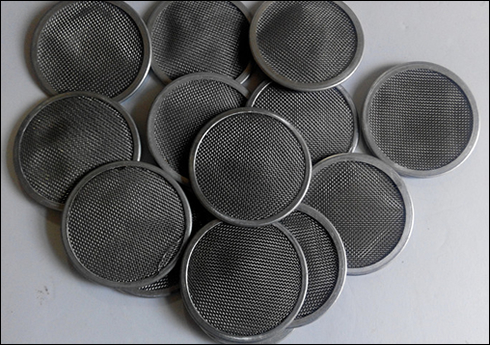

Filter Wire Mesh Disc for Liquid and Gas Filtration industry, single layer, framed

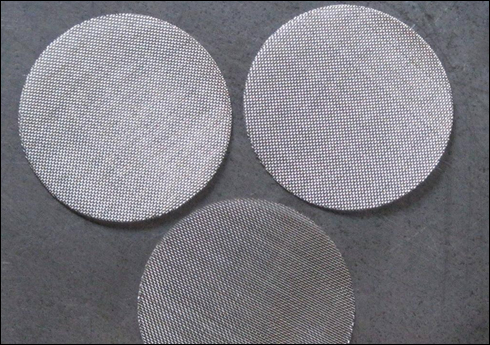

Multilayer Extruder Screen Packs

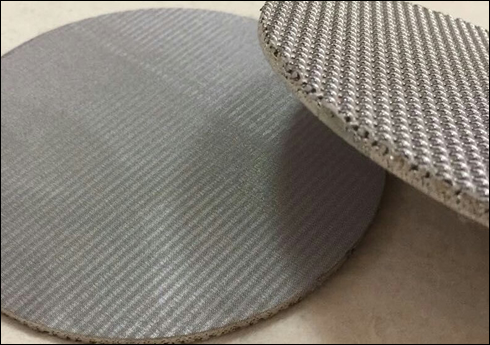

Circular Extruder Screen Spot Welded Disc, Filter disks or Pack Screen

specifications of our customized Disc products

Discs 28-30mm diameter 20 mesh x 0.355 Stainless Steel Wire Cloth Type 304L

Stainless steel filter disc made of SUS316L:

47 mm diameter, 5 micron pore size
25 mm diameter, 10 micron pore size.

Stainless steel discs (30 pieces) with diameter = 1'' , thickness = 200 micron, average of the pore size = 10 micron

Stainless steel wire mesh screen disc with disc diameter around 1".

Stainless steel wire mesh disc for the 60mesh, 200mesh and 325mesh

stainless steel wire mesh products

600 +.000/-.010 OD X .062 nominal thickness---sintered woven wire mesh disc (round), 304 stainless steel (100 microns)

Wire mesh square stainless steel, type304, mill finish woven, plainweave 8 x 8 mesh , square, .0970 x .0970" openning (square, .028" (22-1/4 gauge. thick wire diameter, 60% open area,1 @36." width x 1200" lengh- random cut- based weight 123lb

Large pleated woven wire mesh stainless steel screens. Screens will be 23 inches x 51 inches and need to be 30 mesh .012 wire. The frame width can be up to .625 inches thick.

304 and 316 Stainless Steel Welded Mesh Screen Panels,1/4 x 1/4,0.5mm-0.7mm,300mm-1828mm.

Engineering Wire Mesh Knitted 309, Materials for Mesh Gasket and Sealings
Material: Stainless steel SS309
Wire Diameter: 0.20mm
Hole Dimension: Size hole mesh 6 / inch or 50 -60 hole mesh per feet
Size: 30m x 1.2 m x 0.2mm

Knitted wire mesh in Type 304 Stainless Steel or Inconel. Solid knitted mesh (not hollow) with a nominal diameter of 3/4", 7/8", and 1"

2 micron stainless steel 1.4404 filter mesh (thickness- 1 mm)-sample 0,5 x 1m

Stainless steel wire cloth rolls with aperture width(w/0.850mm)
wire diameter(d/0.630mm) with roll
designation width(1m) & length(30m) according to iso 25914-1

Mesh welded and crimped, 304 stainless steel, 12 gauge wire, with approximately 1 inch by 1 inch square opening, rolls.
Normal size 4ft tall and 200ft long. This can be divided up into 4x 50ft or 2x 100ft smaller lengths for shipping.

Rolls of stainless steel welded wire mesh in grade 304, with 12,7x12,7 mesh size and 1,6mm wire.

Stainless steel T304 welded wire mesh 4” inches by 4” inches opening and .225 diameter, sheets of 4’ feet by 10’.

¾ stainless steel welded wire mesh (square opening), SS316L grade, 18 gauge, in 1.8m width and 100-foot rolls, mesh:¾

1" stainless steel chicken wire 304 or 316, 8 to 14 ft wide rolls

Stainless steel (304) mesh to be used as insect screen. For environment close to the sea, the hole size is 1/8" or as close to 0.125" (6 mesh).

Wire mesh (chain-link type) 15mm x 15mm opening x 3mm thk of wire
thickness built with finish mesh 25mesh (0.7mm opening)-SS304 3.5m(l)x 3.5m(w) mesh size.

Stainless Steel filter cloth 10 micron rating

19 gauge stainless steel hardware cloth with 1/8 square holes 4 width X125length.

Stainless steel wire mesh sheet, dimension sheet 1560 x 2560 mm, material AISI 316, diameter wire: 3,5 mm,mesh: 9 x 9 mm.

Stainless steel woven wire mesh cloth 4x4 mesh .063" dia wire, .187 wide openings 56% open area.

Welded 304 stainless mesh, 25m long 1.8m wide 0.65mm wire 3/4"x3/4" mesh

430 Stainless Mesh
12 Mesh - .023” wire dia
20 Mesh – 016” wire dia
30 Mesh - .012” wire dia
80 Mesh - .0055” wire dia

Stainless steel 316 mesh
15mmX15mm
Wire diameter = 2.5mm
1.6meter X 1.4meter

Stainless Chicken Wire
Material: 304
Mesh: 1/2"
Wire Diameter: 20#
Width or Height: 4'

Continuous Steel Screens
Stainless steel type 304, continuous slot wedge wirewound well screen, 3m length, 1.5mm slot size (slot 60), 150 mm/ 6 inches diameter,200 mm/ 8 inches diameter,250 mm/ 10 inches diameter,300 mm/ 12 inches diameter.

Stainless Steel Wire Mesh:
Emulsion thickness: 0.5 mil
Mesh: 325,400
Mesh angle: 22.5
Wire diameter: 0.9

Stainless steel printing mesh:
304HC, SU304 mesh.
250 mesh count with 0.0016 micron thread diameter



The specifications of our common ss mesh products:

Mesh		S.W.G	Aperture (mm)	Wire Diameter (mm)	Effective (%)	Weight (Kg/m2)
Inch	CM
4mesh	1.6	20	5.45	0.914	76	2.1
5mesh	2	22	4.36	0.711	76	1.3
8mesh	3.15	20	2.26	0.91	43	3.2
10mesh	3.94	20	1.63	0.91	41	4
14mesh	5.52	26	1.36	0.20	57	1.4
20mesh	7.87	30	0.95	0.315	58	0.95
30mesh	11.8	34	0.61	0.234	48	0.8
40mesh	15.7	36	0.44	0.193	50	0.8
60mesh	23.6	40	0.3	0.122	50	0.45
80mesh	31.5	40	0.198	0.12	44	0.58
100mesh	39.4	42	0.154	0.1	37	0.5
120mesh	47.2	44	0.13	0.081	40	0.39
130mesh	51.2	45	0.125	0.07	41	0.325
140mesh	55.1	45	0.111	0.07	38	0.35
150mesh	59.1	46.5	0.115	0.055	48	0.206
