Stainless Steel Wire Mesh Panels

We produce welded mesh panels by stainless steel, it is also called stainless steel wire mesh panels. Available in Grade 304 and Grade 316, and other ss alloys, Grade 316 is commonly known as marine grade stainless steel.

Stainless Steel Welded Wire Mesh Panels
Stainless Steel Welded Wire Mesh Panels

Materials: SUS 304, 316 stainless steel wire. Also availble in mild steel wire.

Application: stainless steel wire mesh panels with excellent corrosion resistance and oxidation resistance, are extensively used as fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.

Stainless steel wire mesh is long lasting and versatile. The range of different gauges and mesh sizes that are available is extensive. Especially suited to situations where the mesh will be exposed to corrosive substances, stainless steel products can perform much better and last longer than other materials.

Mesh Size Wire Diameter Panel Width & length
In MM In Inch MM
12.7mm 1/2"X1/2" 1.0mm - 2.0mm 3Feet x 6Feet
4Feet x 8Feet
5Feet x 10Feet
1M X 2M
1.5M X 3M
2M X 4M
Other panel sizes can also be made according to request
25.4mm 1"X1" 1.5mm - 3.5mm
38.1mm 1 1/2"X1 1/2" 2.0mm - 5.0mm
50.8mm 2"X2" 2.0mm - 6.0mm
76.2mm 3"X3" 3.0mm - 7.0mm
101.6mm 4"X4" 3.0mm - 8.0mm
127mm 5"X5" 4.0mm - 9.0mm
152.4mm 6"X6" 4.0mm - 10.0mm

We can produce stainless steel  wire mesh panels bellow:

1200mm x 2400mm Stainless Steel Welded Wire Mesh Panels

Mesh
mm
Wire Diameter
mm
Panel Weight
Kg
Grade 304
Stocked
Grade 316
Stocked
25 x 25 2.50 9.2
25 x 25 3.00 12.9
25 x 50 3.00 9.7 -
40 x 40 3.00 8.1
50 x 50 3.00 6.5
50 x 50 4.00 11.7
50 x 50 5.00 18.3
50 x 75 5.00 15.3 -
100 x 100 3.00 3.4
100 x 100 5.00 9.4
100 x 100 6.00 13.5
100 x 100 8.00 24.0 -
150 x 150 6.00 9.4 -
200 x 200 6.00 7.1 -

1000mm x 2000mm Stainless Steel Welded Wire Mesh Panels

Mesh
mm
Wire Diameter
mm
Panel Weight
Kg
Grade 304
Stocked
Grade 316
Stocked
25 x 25 3.00 9.0 -
50 x 50 4.00 8.2 -



Mesh Panels and Specific Uses:


Crimped wire mesh can be used for windows, partitions, roasting of meat and flour sieving or mine screens.


Welded Mesh Panels can be used for fencing, fabricating and construction structures. It is made of superior quality steel wire, with flat even surface, firm structure.

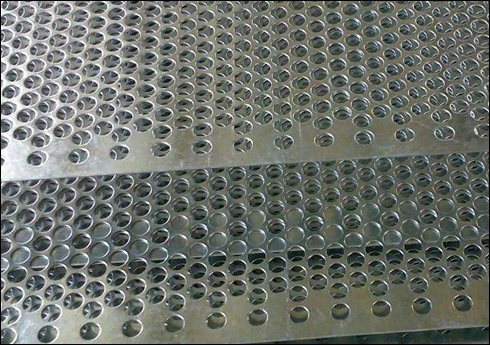

Perforated metal panel facade
Stainless steel decorative metal screen panels, facade mesh panels

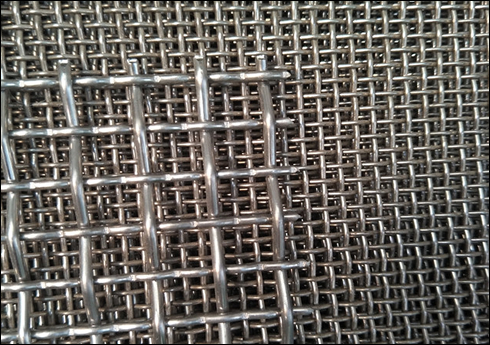

Steel woven panels,square hole mesh
Stainless steel woven mesh panels with high tensile strength for screening


Stainless steel welded mesh panels, square opening, 3/4"

Stainless steel wedge wire panels
panel form 2.4 metres long x 1 metre wide.top wires to be 2mm wide x 3mm deep on support bars of 3mm wide x 5mm deep. The support bars are 50mm centres with the top wires being at 5mm centres.

Stainless Steel Mesh Panels for Exterior Decoration
4'x8' Stainless Steel Wire Mesh Panel

Square stainless steel 3" aperture mesh required as a filter in a square 2' or 3' panel.

Highway metal Soundproof Noise Barrier panels
Width of a panel 2.0m
Height of the panel 4.0 m
Width 100mm

SS 304 Wedge wire Screen Panel size 36' Length X 2.5' Width to remove/ separate pellets (Size < 0.5 mm) from water

Aluminum perforated metal ceiling panels
Perforated metal as ceiling panel and noise barrier panelMetal Ceiling Panels - Aluminum, Perforated and SS
Perforation: 16% open area
Hole size: 1/8"
The panels will have a 5/8" upturn/bend on all edges
1/2" unperforated edges on the face on all sides
Thickness: Not less than .057 inch
Color: White, Silver Satin or Anodized, or other colors for customers options.

The quantities and sizes are:
300 each - 4' X 4'
40 each - 2' X 4'

The panels will lay in standard suspension grid, with acoustical bag insulation laid on above.
