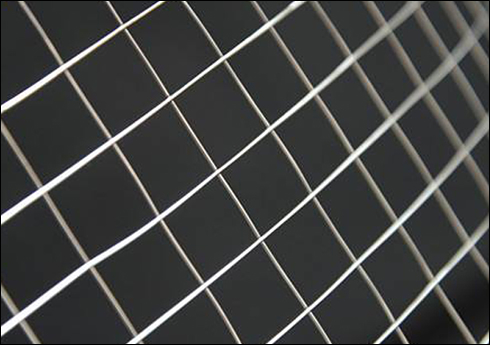

Stainless Steel Welded Wire Mesh Panels and Rolls

Stainless Steel Welded Wire Mesh is a metal mesh manufactured by welding crossed stainless steel wires into uniform square opening mesh by welding process, it is also known as Stainless Steel Welded Wire, Stainless Steel Welded Wire Cloth. Square opening is most common, rectangular opening is also supplied. The electric welding makes the grid structure firmly bonded, not easily deformed by external forces. The longtitudinal wire and intersecting wire are both round wires and are in the same diameter.

The strength and thickness of the welding spots are determined by factors such as weld pressure, time of welding process and temperature. Welded wire mesh rolls and panels can be bent or cut to form a variety of utility meshes without causing the wires to come apart.

Welded Wire Mesh Benefits
Welded SS Mesh has flat surface, stable structure, uniform mesh holes, tough welding points, easy for machining, good stability, good resistance for weather and corrosion, and a very wide application range. Rayleigh supplies and exports high quality stainless steel welded nets, in SUS 304 and SUS316, used in work environments against rust, corrosion and harsh chemicals. Welded stainless steel mesh does not rust or abrade easily and needs no additional protective finish, like galvanizing or PVC coating.

Welded stainless steel mesh is rigid, easy for cutting, fabricating into various forms, making it an ideal metal cloth material for general industrial use.

Rayleigh Can Produce Full Range of SS Welded Mesh

We manufacture and supply Welded 304 Wire Mesh and 316 Wire Mesh in all sizes of wire diameters and openings, in rolls or flat panels.
Material: 302, T304, T304L, T316, T316L, other grades can be customized according to customer requirements.
General roll width of Welded Mesh: 3', 4', 5', 6'
Welded Mesh Length: 100'
General specification of Welded Mesh: 3/4", 1/2", 1", 1/4", 3/8"
General wire gauge (BWG): 12， 13， 14# to 23#
Sizes can be custom made.

We Also Supply Welded Wire Fabricated Mesh Products

As professional manufacturer, we also supply services of wire mesh fabrication - welded mesh products in forms of baskets, cages, shielding screen, fan covers and etc. 1/4" welded wire mesh is popularly used in making machine guard partitions. Welded 316 stainless steel wire mesh is mainly used in high corrosion resistance work environments.
Welded wire mesh can be constructed from various metals and metal alloys including low carbon and stainless steel.

Selecting Stainless Steel Welded Wire Mesh Rolls

Selecting Wire Meshes:

Welded SS Mesh or Woven SS Mesh:

Stainless steel welded mesh has uniform grid patterns, can be delivered in rolls, sheets or panels, discs, not easily deformed by fabricating or external force, compared with Woven Wire Mesh. So, if you consider a more versatile fabrication and remaining the shape, consider Welded Mesh.

Welded Stainless Mesh, or Galvanized Welded Mesh:
According to the materials and surface treatment, we supply stainless steel welded mesh, welded mesh electro-galvanized, hot-dip galvanized, and PVC coated welded wire mesh.
304 and 316 stainless steel welded wire mesh has a much longer service life, and offers more excellent corrosion resistance, compared with galvanized welded mesh.

Wire Mesh Sizes and Delivery Forms:

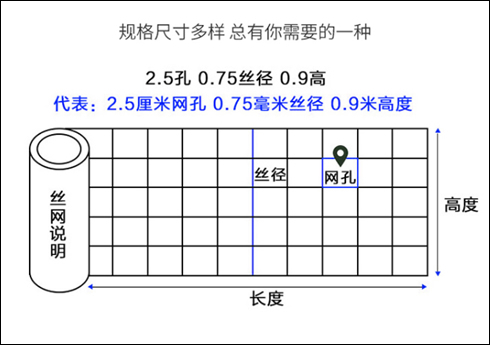

Welded mesh is defined by wire diameter, mesh size, mesh roll and panel dimensions. And the mesh size can be center distance or clear distance. We can provide the stainless steel welded mesh in rolls or panels, for thin wire welded mesh normally produced in rolls, and if the wire diameter too thick, the mesh can not be rolled up, it need to produced into panels.

The width of welded wire mesh rolls are 1m, 1.2m, ,1.5m, 2.0m, and the length is 30m. The standard dimensions of mesh panels is 1.2m*2.4m, other dimensions can be produced according to clients requirement.



Common Welded Stainless Steel Mesh Specification Tables ( Mesh, Wire, Unit Weight)

Mesh Size		Diameter		Weight (Approximate)
mm	in.	mm	in.	kg/m2	lb/100 ft2
3.2	1/8	0.439	0.0173	1.86	38
6.4	1/4	0.551	0.0217	1.66	34
6.4	1/4	0.655	0.0258	1.86	38
8.5	1/3	0.805	0.0317	1.77	36
8.5	1/3	0.805	0.0317	0.65	13
10.6	3/7	0.899	0.0354	1.21	25
12.7	1/2	0.655	0.0258	1.86	38
12.7	1/2	0.805	0.0317	1.66	34
12.7	1/2	1.04	0.041	0.78	16
12.7	1/2	1.04	0.041	2.54	52
12.7	1/2	1.57	0.062	1.22	25
12.7 x 25.4	1/2 x 1	1.04	0.041	1.32	27
12.7 x 25.4	1/2 x 1	1.45	0.057	0.70	14
12.7 x 25.4	1/2 x 1	1.57	0.062	0.47	10
15.9	5/8	1.20	0.047	1.11	23
19.0	3/4	1.04	0.041	1.11	23
19.0	3/4	1.45	0.057	1.27	26
19.0	3/4	1.57	0.062	1.22	25
25.4 x 12.7	1 x 1/2	1.45	0.057	0.69	14
25.4 x 12.7	1 x 1/2	1.57	0.062	1.07	22

Mesh Size

Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1. Standard roll length: 30m;width: 0.5m to 1.8m. 2. Special sizes available at request. 3. Packing: in waterproof paper in rolls. Custom packing available at request.



Our Stainless Steel Welded Wires Are Used In

Stainless welded mesh netting is used in architectural, agricultural, commercial and industrial applications.
SUS 316 stainless steel mesh offers a higher level of corrosion resistance, specifically suitable in salt water environments.

304 SS and 316 SS weld mesh rolls and panels are popularly used in following fields:
Infill panel & railing systems
Industrial fan guards
Machine guards and shielding
Reinforcement for plaster of concrete
Security grille and enclosures
Animal cages and control
Decorative room dividers
Architecture mesh in wall cladding and ceiling panels
Air vents and aviary screens
Mesh basket fabrication
Conveyor mesh in food applications
Security screen
Gabions
Support for cable and pipe
Zoo animal cages
Baskets and racks manfuacture
Construction



We produce and export Alkali and acid resistant stainless steel welded wire mesh as below:



304 Stainless Steel Welded Wire Mesh Type AISI304 (18/8 Nickel Chrome Content)
All mesh sizes are measured as pitch (centre of wire to centre of wire) and all items supplied complete with cut flush edges all round.
The mesh products are clean from excess oil and grease, and supplied flat and square with strong weld joints throughout.

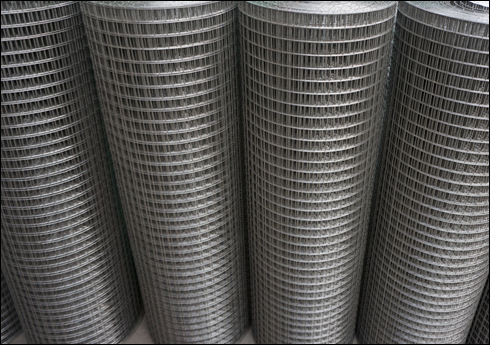

304 Welded Wire Mesh Rolls:

Quantity	Mesh Size	Wire Diameter	Width	Length
100	1" x 1"	2.50 mm	48"	96"
400	1" x 1"	3.00 mm	48"	96"
100	2" x 2"	2.50 mm	48"	96"
400	2" x 2"	3.00 mm	48"	96"

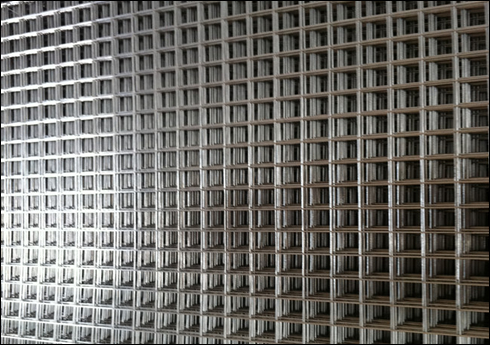

304 Welded Wire Mesh Panels:

Quantity	Mesh Size	Wire Diameter	Width	Length
100	1" x 1"	2.50 mm	48"	96"
400	1" x 1"	3.00 mm	48"	96"
100	2" x 2"	2.50 mm	48"	96"
400	2" x 2"	3.00 mm	48"	96"
100	3" x 1/2"	3.00 mm	48"	96"
100	3" x 1/2"	2.50 mm	48"	96"

Stainless steel wire mesh for bird aviary

Type: Stainless Steel Welded Wire Mesh
Hole: 1/2" x 1/2"
Purpose: Stainless steel fence wire mesh for birds

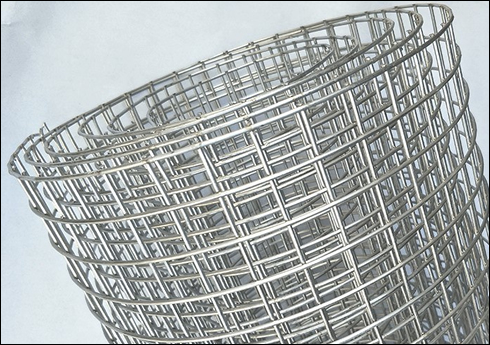

304 Stainless Steel Hardware Cloth
Welded mesh with 3-25mm (1/8-1 in.) openings is also called hardware cloth.

Hardware Cloth: 1/2" Mesh, 16 gauge
Material: AISI 304 Stainless Steel
Hole shape: Square
Structure: Welded grid
Rolls: 4foot x 25 foot

Stainless steel welded wire panels 8' by 4', wire 16gauge, mesh 1x2 in

304 Grade Stainless Steel Welded Wire Mesh

6"x6"x1/4" stainless steel welded wire panels, mesh: 1/4" x 1/4"
Wire: 22 Gg 0.8mm
Material: 304

316L Grade Stainless Steel Welded Wire Mesh

Wire mesh rolls, SS316L grade, 18 gauge, in 1.8m width and 100-foot rolls, mesh: ¾"

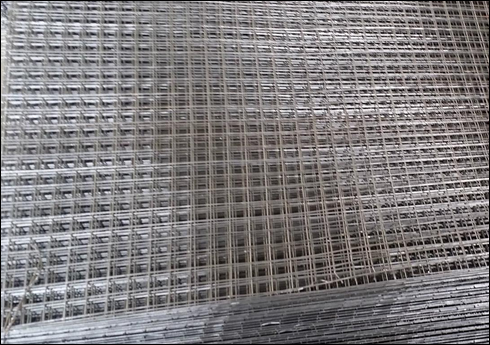

Stainless steel threaded 6 x 6 welded mesh wire, 9 gauge

4x4 Welded Stainless Steel Wire Mesh
Wire 0.8128 mm or 0.032"
Rolls 1524 mm width or 5 feet
